當前位置：首頁 > 產品總匯 > 防水防塵防腐類 > FXK-L 系列防水防塵防腐控制箱

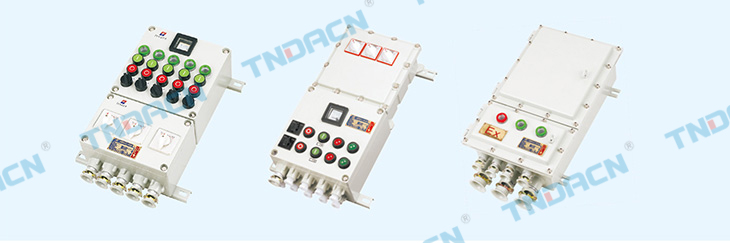

FXK-L 系列防水防塵防腐控制箱

詳細信息

詳細信息

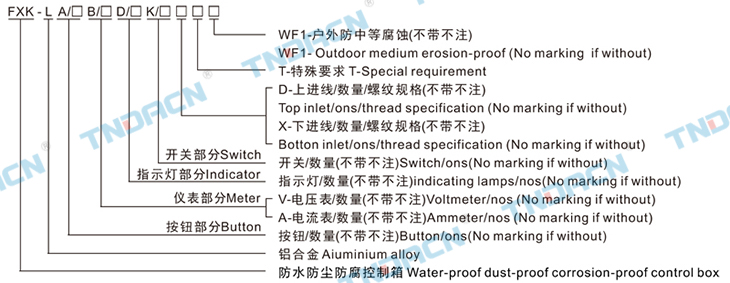

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.多水、多塵、潮濕等環境，防弱酸、弱堿腐蝕。
4.廣泛應用于食品、制藥、車站、加油站、商場、大型廳堂等工廠企業及商品場所。
5.根據配置的鎮流器，必須選擇匹配的光源，用戶電源電壓波動范圍必須滿足國家標準要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrial and commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's power voltage fluctuant range mustaccordto the national standard.

產品特點 Features

1. 殼體采用高強度鋁合金一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑，外殼結構緊湊合理，強度好，防爆性能
優良，表面塑粉附著力強，具有良好的防腐性能，外表整潔，美觀大方；
2. 增安型外殼，模塊結構可根據用戶需要，隨意組裝，內裝防爆指示燈、電流表、電壓表、按鈕及轉換開關等；
3. 隔爆型外殼，內裝指示燈、電流表、電壓表、按鈕、轉換開關、繼電器等；
4. 內裝元件可根據用戶要求進行排列、生產；
5. 鋼管或電纜布線。
1. Enclosure is cast with high intensity aluminum alloy, surface is sprayed with plastic by high voltage static electicity, after the highly impeller cleaning. The structure of enclosure is reasonable, high-intensive and perfect-explosive and the surfaceplastic of good adhesive force is excellent in explosion-proof and appearance;
2. For increased safety enclosure, original modularization structure can be assembled freely according to user's requirements.Built-in explosion-proof indicator, ammeter, voltmeter, button and convert switch;
3. For flame-proof enclosuer, built in explosion-ploof indicator, ammeter, voltmeter, button, convert switch and relay;
4. Built-in components can be arranged and made according to user's requirements;
5. Wiring with steel tube or cable.

主要技術參數 Main technicl parameters

額定電壓(V) Rated voltage	額定電壓(V) Rated voltage	使用類別 Description	防腐等級 Erosion-proof class	防護等級 Degree of protection	進線螺紋 Inlet thread	電纜外徑 Cable outer
220/380	6,10,16	AC-3 AC-4	WF2	IP65,IP66*	M16~M63 G1/2"~G2"	φ8~φ38
