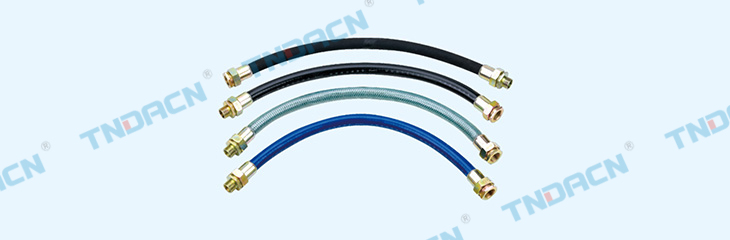

FNG 系列防水防塵防腐撓性連接管

詳細信息

詳細信息

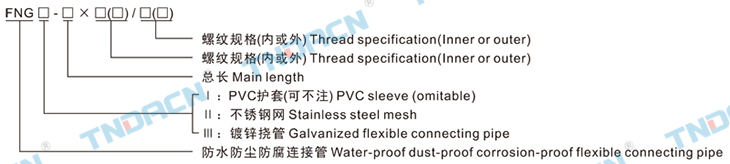

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿腐蝕，多水、多塵、潮濕等環境。
4.廣泛用于石油、化工、倉庫、食品、制藥、軍工等工廠企業配線配管。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali, and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, warehouse, food, medicine, war industry and so on wiringand tubing.

產品特點 Features

FNG-Ⅰ(橡塑護套) Rubber sheld	FNG-Ⅱ(不銹鋼) Stainless steel	FNG-Ⅲ(鋼絲編織) Steel wire knit
1.本產品由優質碳鋼制成的內外螺紋接頭、金屬軟管外包PVC管等組成 1. It's composed of thread connectors and metal flexible pipe weared with PVC pipe, connectors are made of carbon steel with good quality.	1.本產品由優質不銹鋼制成的內外螺紋接頭、不銹鋼波紋管外不銹鋼網管等組成 1.this product is made up of the in-out thread joint of excellent stainless steel, stainless ripple pipe casing with stainless pipeline.	1.本產品由優質碳鋼制成的內外螺紋接頭、內襯鋼絲網管加強的橡膠管等組成 1.It's composed of inlet and outlet connector, rubber pipe that lined with stainless steel net pipe.
2.具有無毒無味、耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優 點。 2.It has no poison and taste, it's with oil, acid, corrosion, wearing and aging resistance water-proof flame-proof and good flexible functions	2.具有耐油、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and good flexible function.	2.具有耐油、耐酸、耐腐蝕、耐磨、耐老化、防水、阻燃、撓性良好等優點。 2.It's with oil corrosion-resistance aging wearing resistance, water and flame proof and perfect flexible function.

注：可根據用戶需要特殊加工長度及螺紋等。 The length and thread can be made on request.

主要技術參數 Main technical parameters

型號 Type	管通徑 Pipe diameter	接頭管螺紋(G") Connecting pipe thread	長度 Length	彎曲半徑下限 Min bend radius
FNG-□15×700 FNG-□15×1000 FNG-□20×700 FNG-□20×1000 FNG-□25×700 FNG-□25×1000 FNG-□32×700 FNG-□32×1000 FNG-□40×700 FNG-□40×1000 FNG-□50×700 FNG-□50×1000 FNG-□70×700 FNG-□70×1000 FNG-□80×700 FNG-□80×1000 FNG-□100×700 FNG-□100×1000 FNG-□100×1400	15 15 20 20 25 25 32 32 40 40 50 50 70 70 80 80 100 100 100	G1/2" G1/2" G3/4" G3/4" G1" G1" G1 1/4" G1 1/4" G1 1/2" G1 1/2" G2" G2" G2 1/2" G2 1/2" G3" G3" G4" G4" G4"	700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 700 1000 1400	80 80 110 100 145 145 180 180 210 210 250 250 350 350 400 400 500 500 500

產品樣本

電子樣本
