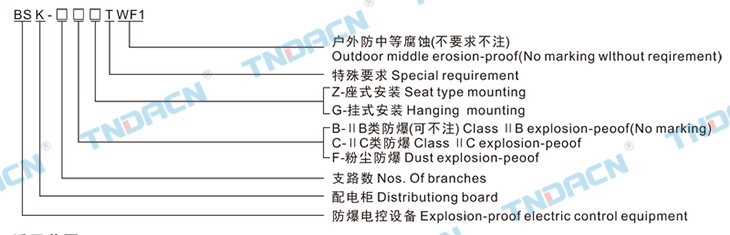

型號含義 Model implication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

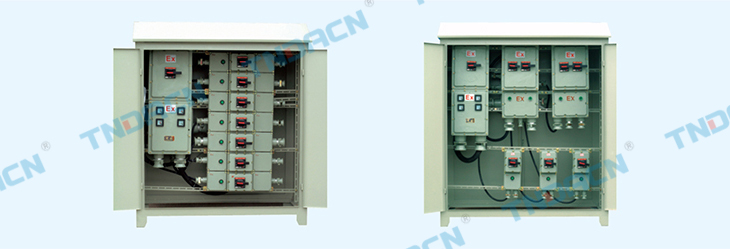

產品特點 Features

1.外殼采用優質鋼板焊接成型，內裝各種防爆電器或各種防爆電器組合；
例：防爆動力(照明)配電箱、防爆電磁起動器、防爆動力檢修箱、防爆檢修電源插座箱等防爆電器；
2.操作方式可根據要求制成面板上直接操作或開門后操作等形式；
3.可實現對電路中的各種參數進行計量和檢測，通過內裝各種防爆電表或各種二次儀表來實現；
4.可滿足大電流的防爆(電磁起動)配電裝置(降壓)；
5.可實現兩路或多路電源進線進行電路的自動或手動切換；
6.根據用戶提供的電氣原理圖及主要技術參數選定相應是防爆電器組合，確定配電柜的外形尺寸，滿足用戶現場的需要。
1.The enclosure is welded by excellent steel plate, it is built-in many kinds of explosion-proof apparatys or their combination;eg: explosion-proof power (illumination) distribution box, explosion-proof electromagnetic starter, explosion-proof poertmaintaining box, explosion-proof power maintaining socket box, etc;
2.The operating ways can be on panel direct or inside operationaccording to the detail request;
3.Can realize monitoring and measurement for the various parameters in circuit, pressure and temperature can be realized bybuilding in various explosion-proof meters or secondary meters;
4.It can satisfy explosion-proof distribution set (electromagnetic starer) with heavy current;
5.Two or multi-circuits entry can be converted, by hand or automatically;
6.According to the electric scheme and main technical parameters offered by user, select explosion-proof electrical equipments and,decide the outline dimensions of distribution board, to satisfy user's locale requirement.
