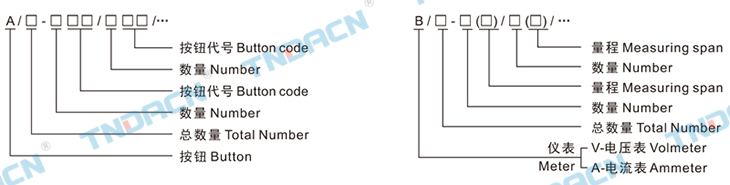

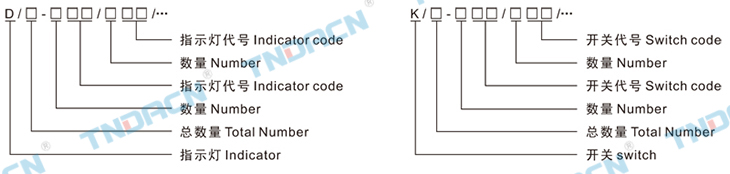

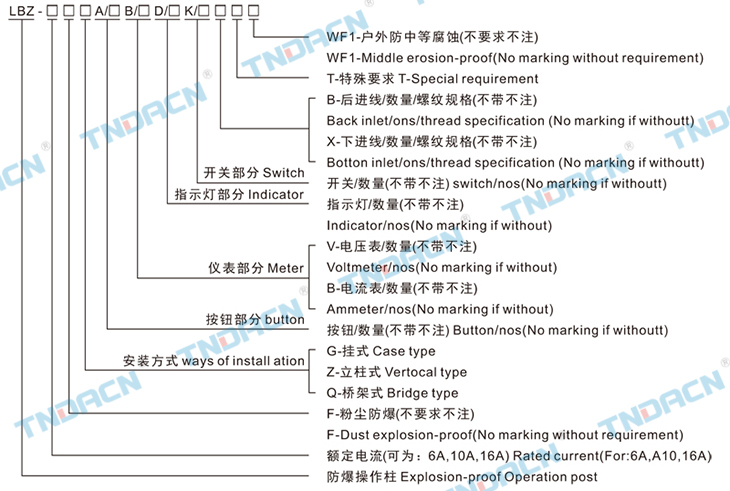

型號含義 Model implication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: class ⅡA ⅡB ⅡC or inflammabledust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、
防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；

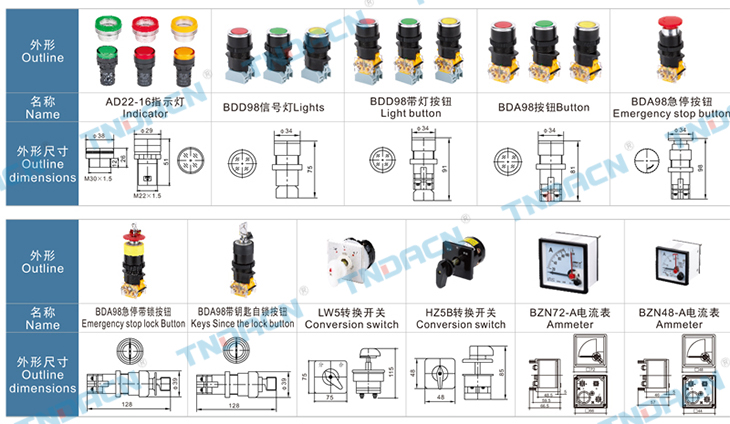

2.內可裝有指示燈、電流表、電壓表、按鈕、轉換開關及用戶需要的其他元件(電位器、頻率表、轉速表等)；
3.轉換開關功能30多種，由用戶選擇；
4.電流表及電壓表量程由用戶確定；
5.可按用戶要求特制；
6.鋼管或電纜布線均可

1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in indicator lamps, ammeter and voltmeter, button, convert switch and other components (potentionmeter, ftrquencymeter, tachometer and so on);3.The convert switch has 30 kinds of functions. If can be selectedby user;
4.Ranges of ammeter and voltmeter are decided by users;
5.It can be made on request;
6.Wiring with steel tube or cable.

注：隔膜腔內裝AD26B-16，標注方法參考8019
Note:the flame-proof cavity install AD26B-16,the tagging way please see 8019

主要技術參數 Main technical parameters

*.要求IP66，需注明。IP66 Requirements must be marked

專用于隔爆腔：Especially used in explosion-insulation cavity

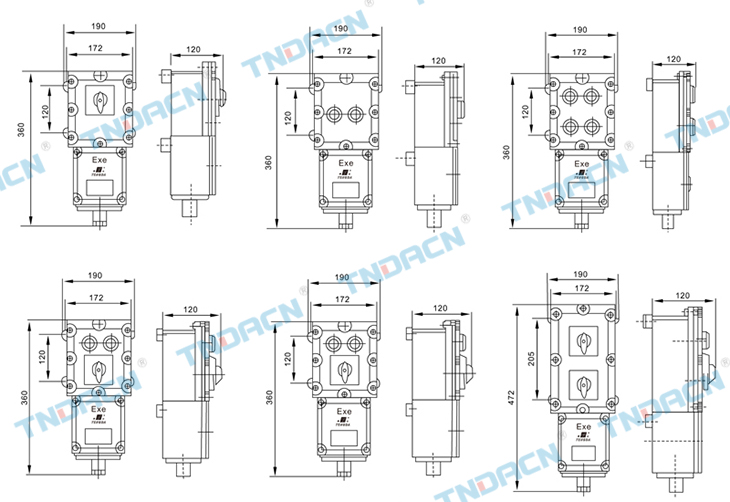

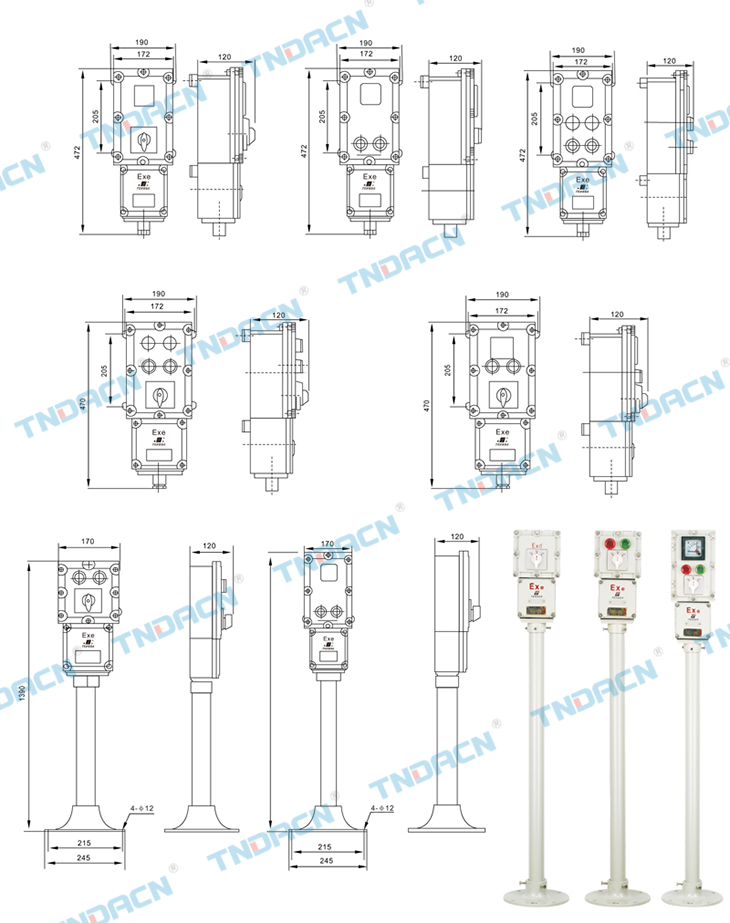

外形及安裝尺寸 Outline & installation dimensions

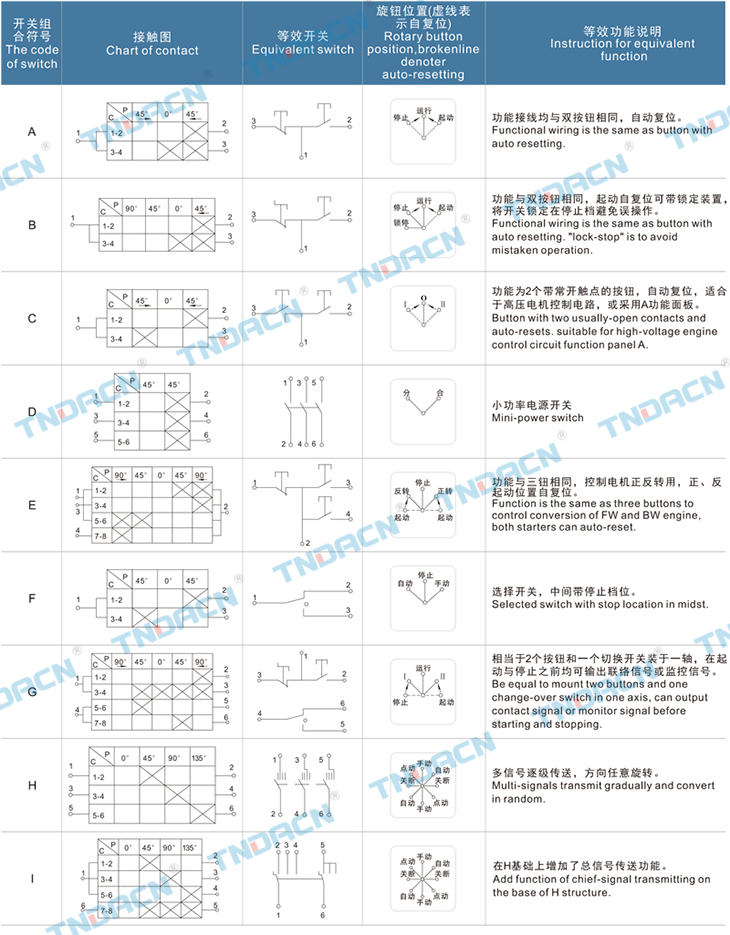

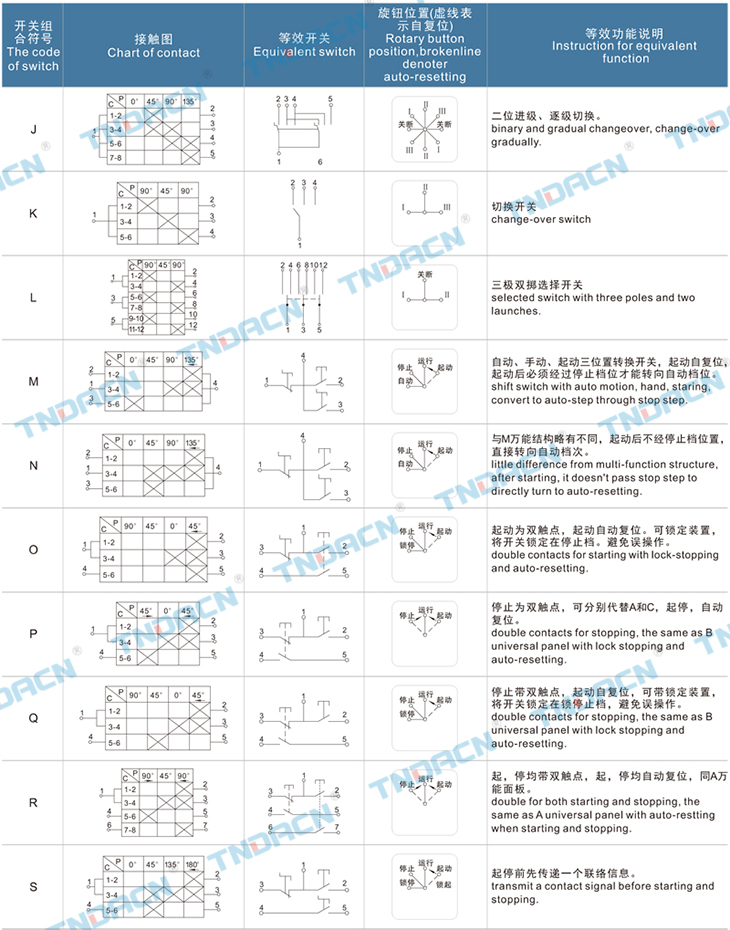

開關代號簡要說明 Brief instruction of switch code
