詳細信息

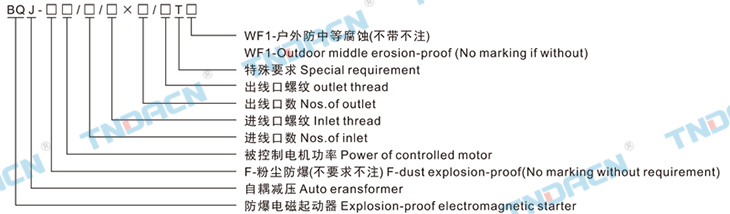

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所; 2.ⅡA、ⅡB爆炸性氣體環境或可燃性粉塵環境; 3.戶內、戶外(IP54); 4.溫度組別:T1~T4; 5.應用于石油、化工、航天、軍工等場所。 1.Hazardous:division 1 &2,or 20,21,&22; 2.Explosive gas atmosphers: class ⅡA ⅡB or inflammable dust environment; 3.Indoor or outdoor(IP54); 4.Temperature class:T1~T4; 5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.鋼板焊接,表面噴塑; 2.內裝自耦變壓器、交流接觸器、熱繼電器、斷路器、 時 間繼電器、電流互感器、電壓表、電流表、轉換開關及 指示燈等元件; 3.產品具有過載、短路、欠壓、斷相等保護功能; 4.可根據用戶要求特制; 5.鋼管或電纜布線。 1.Welded with steel plate, surface is sprayed with plastic; 2.Built-in auto-transfomer, AC contactor, thermal relay, circuit-breaker, time relay, current instrument transformer, voltmeter,ammeter, transfer switch and indicator lamp; 3.With overload, short circuit, low voltage, short phase protectionfunctions; 4.It can be made on requests;T1~T4/T6; 5.Wiring with steel tube or cable.
主要技術參數 Main technical parameters
電器原理圖 Electric scheme
外形尺寸 Outline dimensions
