詳細信息

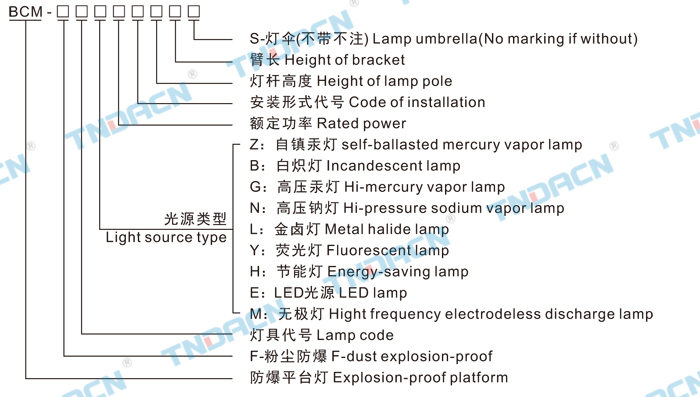

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶外(IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3. outdoor(IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.
產品特點 Features
1.燈具外殼：鑄鋁合金殼體壓鑄成型，表面噴塑；不銹鋼板拉伸成型；SMC或DMC模壓成型；
2.燈桿為鍍鋅鋼管表面噴塑。具有較好的防腐能力?；捎描T鐵制造而成，牢固穩定。
3.燈桿和基座均可用戶要求特制。
4.電纜布線。
1.The enclosure is cast with aluminium alloy or strecthed by stainless steel stretching and SMC or DMC extruding, Surface is sprayed with plastic;
2.Junction box or special ballast of road lamp is installed.
3.Lamp pole is galvaniced pipe with plastic-sprayed surface. It can be well corrosive-proof. The base made of cast iron is steadly fixed. Lamp pole and base can be specially made as required.
4.Wiring with or cable.

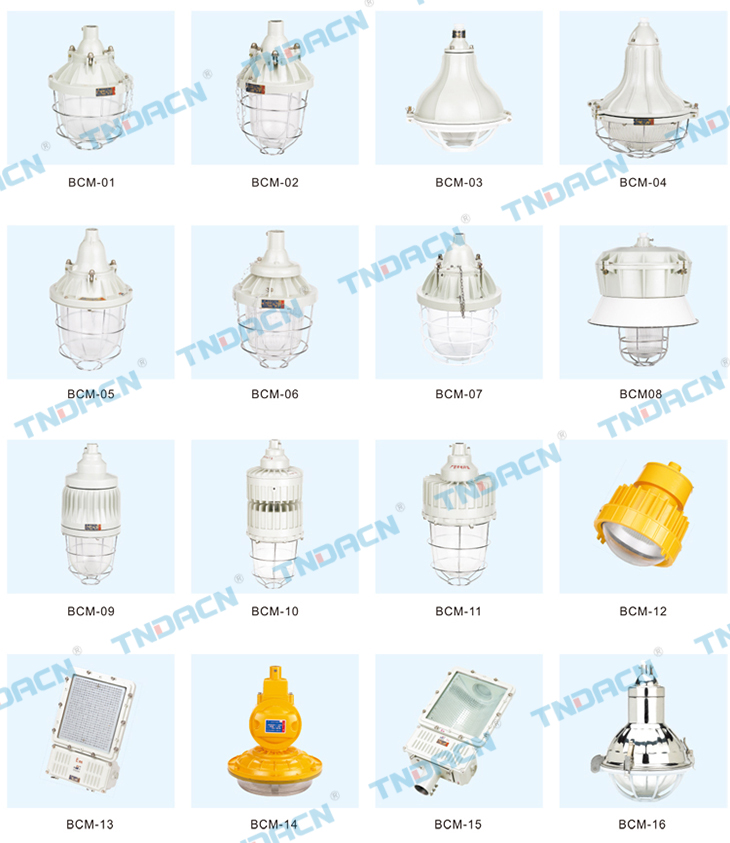

主要技術參數 Main technical parameters
燈具代號
Code of lamp |
燈具型號
Type |
防爆標志
Ex-mark |
主要技術參數
Main technical parameters |
| BCM-01 |
B3C-200(大Big)
|
ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-02 |
B3C-200(小Small) |
ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-03 |
BGL-200L |
ExeⅡT3等效于 Ⅱ2G ExeⅡT3(歐標)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(歐標) |
|
| BCM-04 |
BGL-250L |
ExeⅡT2等效于 Ⅱ2G ExeⅡT2(歐標)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(歐標) |
|
| BCM-05 |
B3C-250 |
ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-06 |
ccd-200 |
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-07 |
B3C-400 |
ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-08 |
BF-L150 |
ExeⅡT2等效于 Ⅱ2G ExeⅡT2(歐標)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(歐標) |
|
| BCM-09 |
ccd91-L250 |
ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標) |
|
| BCM-10 |
ccd92-N250 |
ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標) |
|
| BCM-11 |
ccd93-105W |
ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標) |
|
| BCM-12 |
ccd94-30W |
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-13 |
ccd95-30W |
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-14 |
BEW |
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-15 |
BTd92 |
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) |
|
| BCM-16 |
BGL-250G |
ExeⅡT3等效于 Ⅱ2G ExeⅡT3(歐標)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(歐標) |
|
光源Light
source |
白熾燈
Incandescent
lamp |
自鎮汞燈
Self-ballasted
mercury lamp |
高壓汞燈
Hi-pressure
mercury lamp |
高壓鈉燈
High-pressure
sodium lamp |
金鹵燈
Metal halide
lamp |
燈座
Socket |
| 型號 Type |
| BCP-01 |
200W
|
125,160W |
125W |
70,110W |
70,100W |
E27 |
| BCP-02 |
200W |
125,160W |
125W |
70,110W |
70,100W |
E27 |
| BCP-03 |
200W |
125,160W |
125W |
|
70,100W |
E27 |
| BCP-04 |
300W |
250W |
175,250W |
|
175,250W |
E40 |
| BCP-05 |
300W |
250W |
175,250W |
150,250W |
175,250W |
E40 |
| BCP-06 |
200W |
125,160W |
125W |
70,110W |
70,100W |
E27 |
| BCP-07 |
450W |
250,400W |
175,250,400W |
150,250,400W |
175,250,400W |
E40 |
| BCP-08 |
|
125,160W |
125W |
175,250W |
70,100,175,250W |
E27,E40 |
| BCP-09 |
|
250,400W |
175,250,400W |
150,250,400W |
175,250,400W |
E40 |
| BCP-10 |
|
250,400W |
175,250,400W |
150,250,400W |
175,250,400W |
E40 |
| BCP-11 |
內裝節能燈 Built-in energy-saving lamps(65,85,105,125)W |
| BCP-12 |
內裝LED節能燈 Built-in LED energy-saving lamps(20,30,40,50)W |
| BCP-13 |
內裝LED節能燈 Built-in LED energy-saving lamps(80,100,200)W |
| BCP-14 |
內裝高效節能無極燈 Built-in energy efficient lamp(40,50,85,125,160,200)W |
| BCP-15 |
300W |
250W |
125W,250W |
150W,250W |
175W,250W |
E27,E40 |
| BCP-16 |
300W |
250W |
125W,250W |
150W,250W |
175W,250W |
E27,E40 |

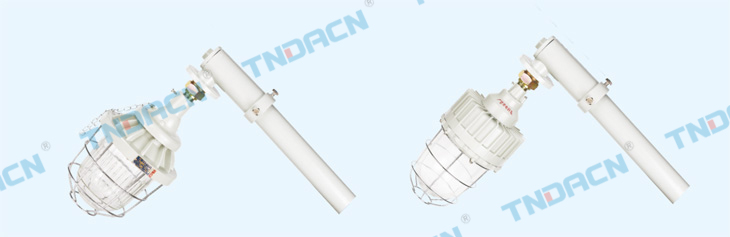

平臺燈配用防爆燈 Platform lamp is with explosion-proof lamp

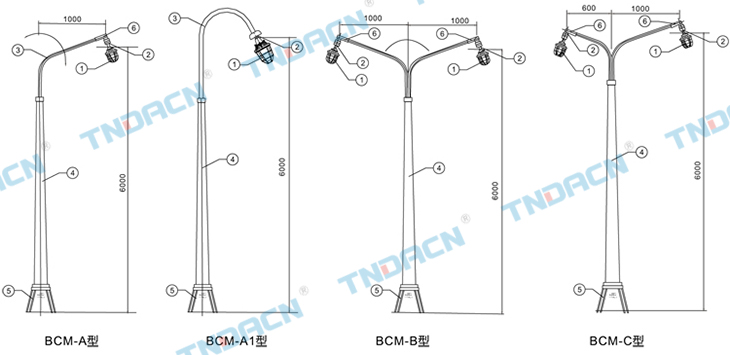

外形及安裝尺寸 Outline&installation dimension
安裝配件表 Installation accessories and spare parts

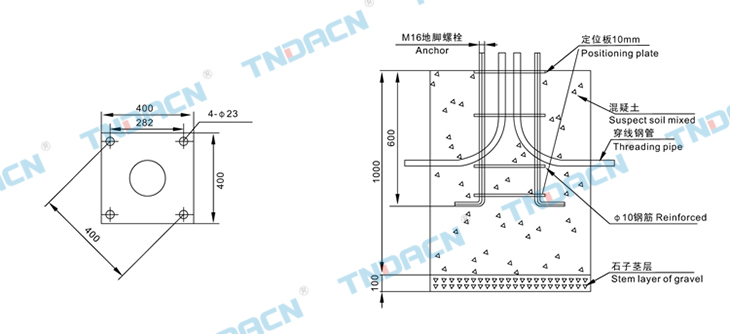

路燈基座混泥土示意圖 Schematic diagram of the base concrete street
