詳細信息

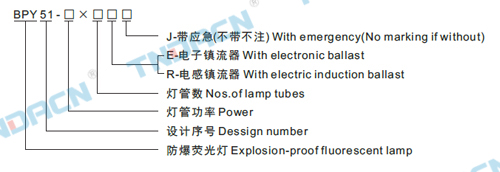

型號含義 Modelimplication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所; 2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境; 3.戶內、戶外(IP54、IP65*); 4.溫度組別:T1~T4/T5/T6; 5.石油、井架、采油平臺等野外較惡劣的環境。 1.Hazardous:division 1 &2,or 20,21,&22; 2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or inflammable dust environment; 3.Indoor or outdoor(IP54,IP65*); 4.Temperature class:T1~T4/T5/T6; 5.It is used in outside hard atmospheres, such as oil, headframe and drilling plat.
產品特點 Features
1.外殼采用高強度合金鋁拉伸成型,表面氧化處理,造型美觀大方,防腐能力強; 2.燈罩采用鋼化玻璃,透光率高,可承受高強撞擊; 3.采用密封結構,特制專用不銹鋼鎖扣,保證了較強的防水、防塵能力; 4.特制安裝支架和燈座結構,具有良好的防震能力,并可根據要求調整照射的角度; 5.內裝光源可為雙腳熒光燈或單腳瞬時啟動熒光燈; 6.專用于石油、井架、采油平臺等野外惡劣環境中; 7.可根據用戶要求加裝應急裝置。 1.The enclosure is moulded by the high strength aluminum alloy for one time. Its exterior has treated with oxidation. It has great anti-corrosive performance and the exterior and the exterior is clean and beautiful; 2.Lamp housing is made of high borosilicate toughened glass with high transmittance, and it can withstand strong impact; 3.It has sealing structure and a special stainless steel twistlock, which has ensured the great functions of water proof and dust proof; 4.Mounting the special bracket and lamp holder, which has great shock-proof function. The lighting range can be adjusted in request; 5.Inner lamps can be double pins fluorescent lamp or single pin lamp which can start instantly; 6.It is specially used in worse atmospheres outside, such as oil, headframe ans drilling plat; 7.Adding an emergency device to meet customers' demands.
主要技術參數 Main technical parameters
防腐等級 Erosion-proof-class
WF1

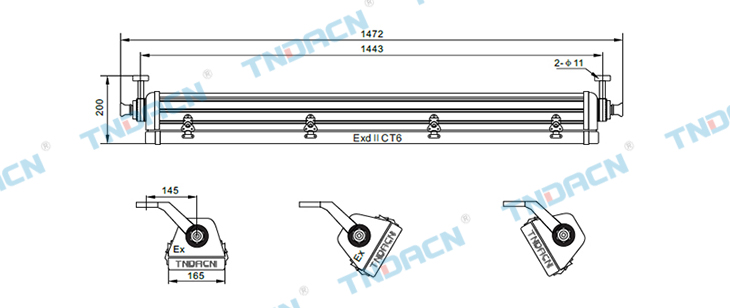

外形及安裝尺寸 Outline&installation dimension
