詳細信息

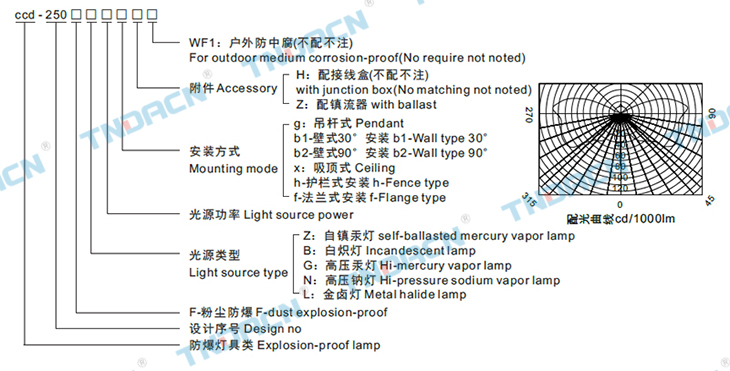

型號含義 Modelimplication
適用范圍 Applications
|
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.可配裝白熾燈、汞燈、高壓鈉燈、金鹵燈；
6.應用于石油、化工、航天、軍工等場所。
|
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.
|
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、 防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.燈罩采用高硼硅鋼化玻璃，透光率高，可承受高強沖擊；
3.采用密封結構，保證了較強的防水、防塵能力；
4.燈體和出線套采用無線連接，便于用戶安裝和維修；
5.鋼管布線
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct.
3.It has sealing structure, which has ensured the great functions of water proof and dust proof.
4.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.
5.Conduit wiring.
主要技術參數 Main technical parameters
|
|
配用光源 Supplied with light source

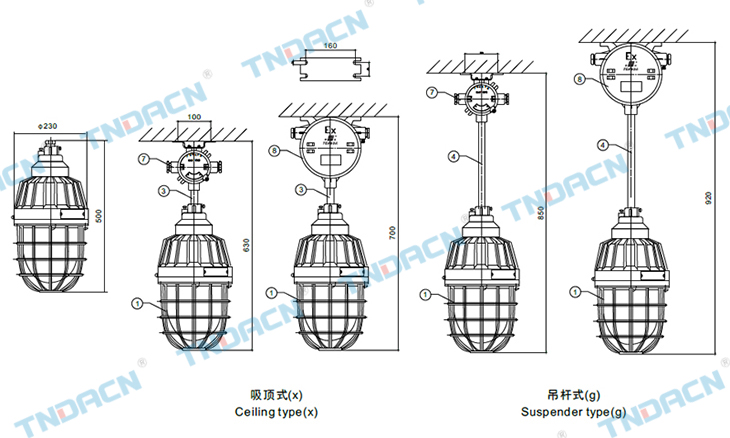

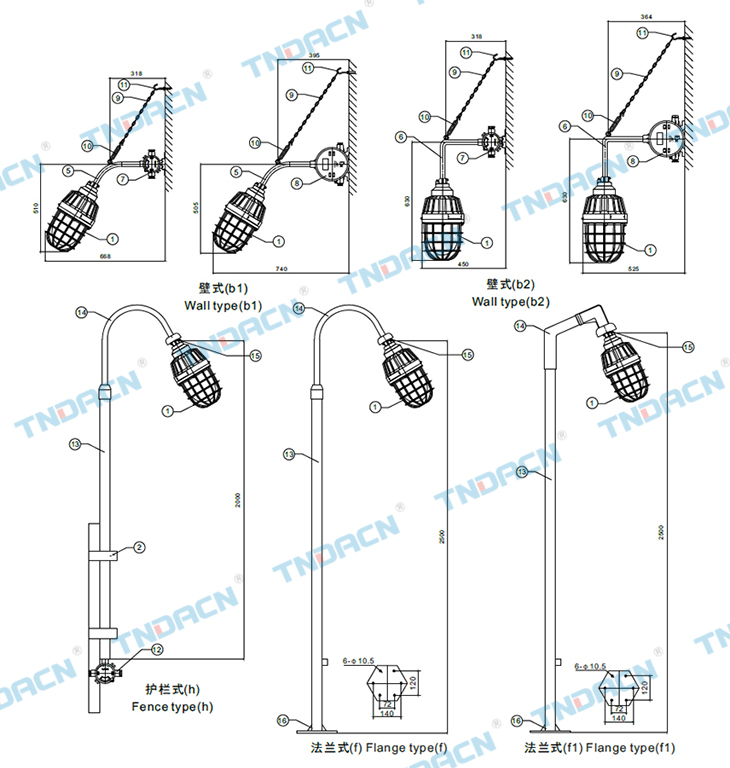

外形及安裝尺寸 Outline&installation dimension
安裝配件表 Installation accessories and spare parts
